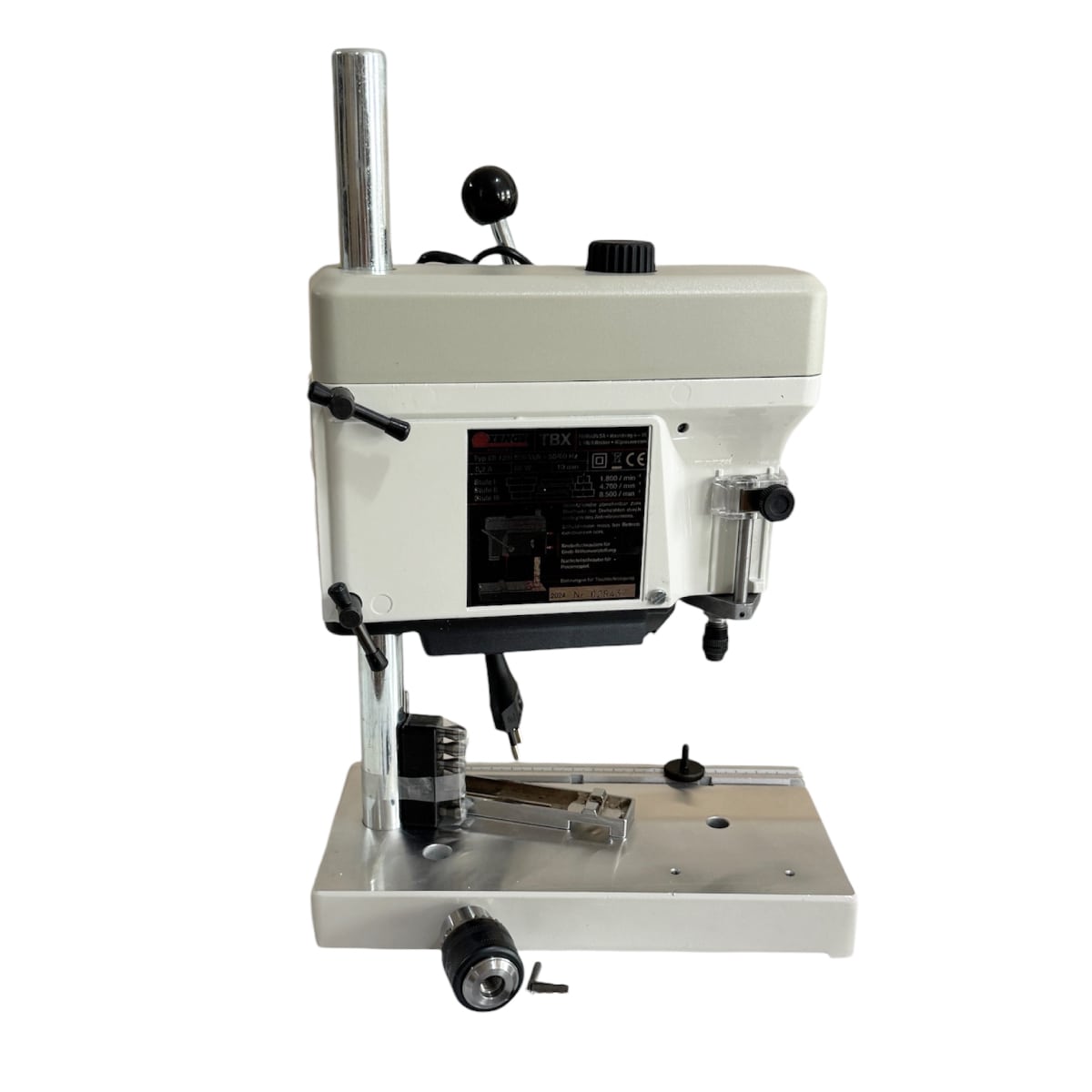

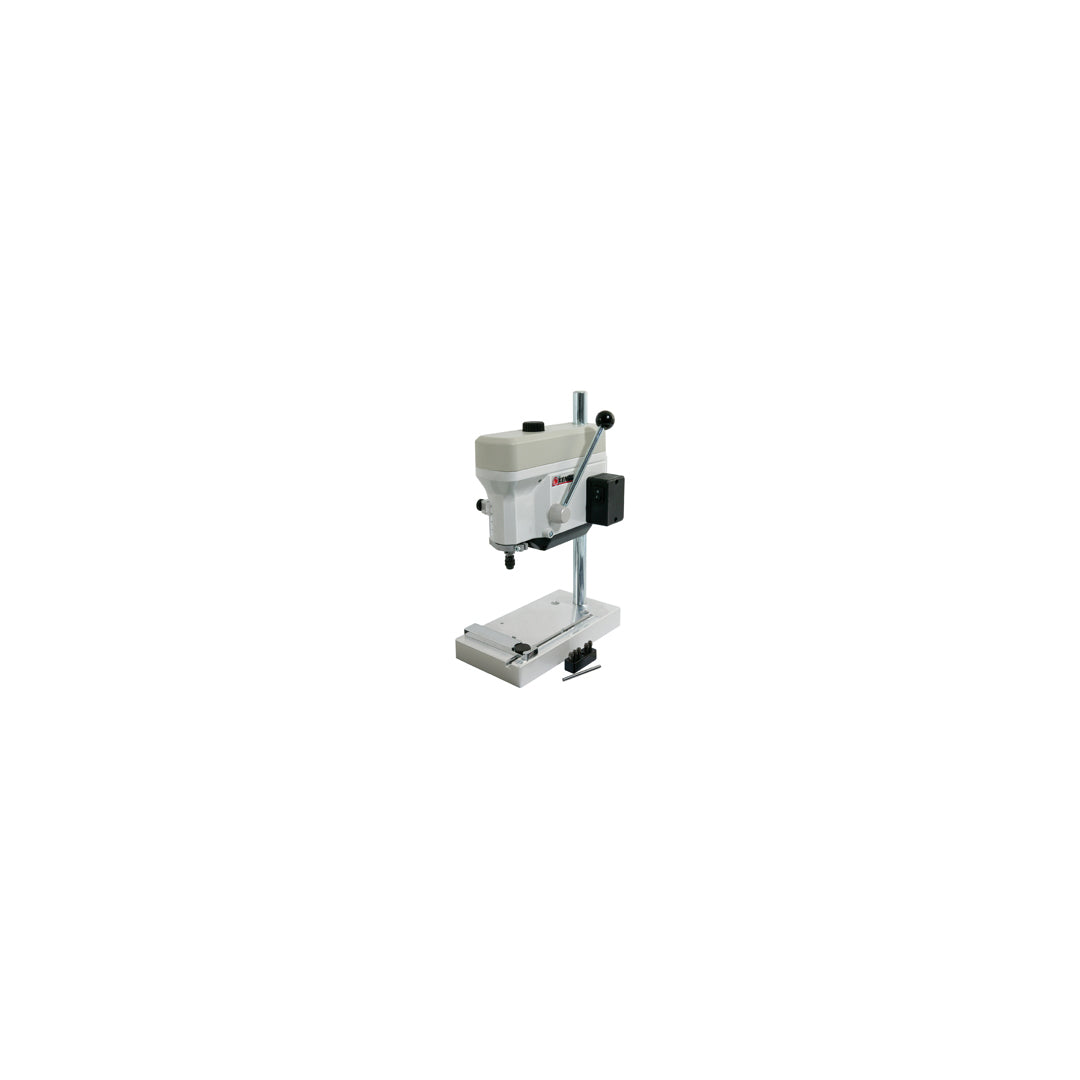

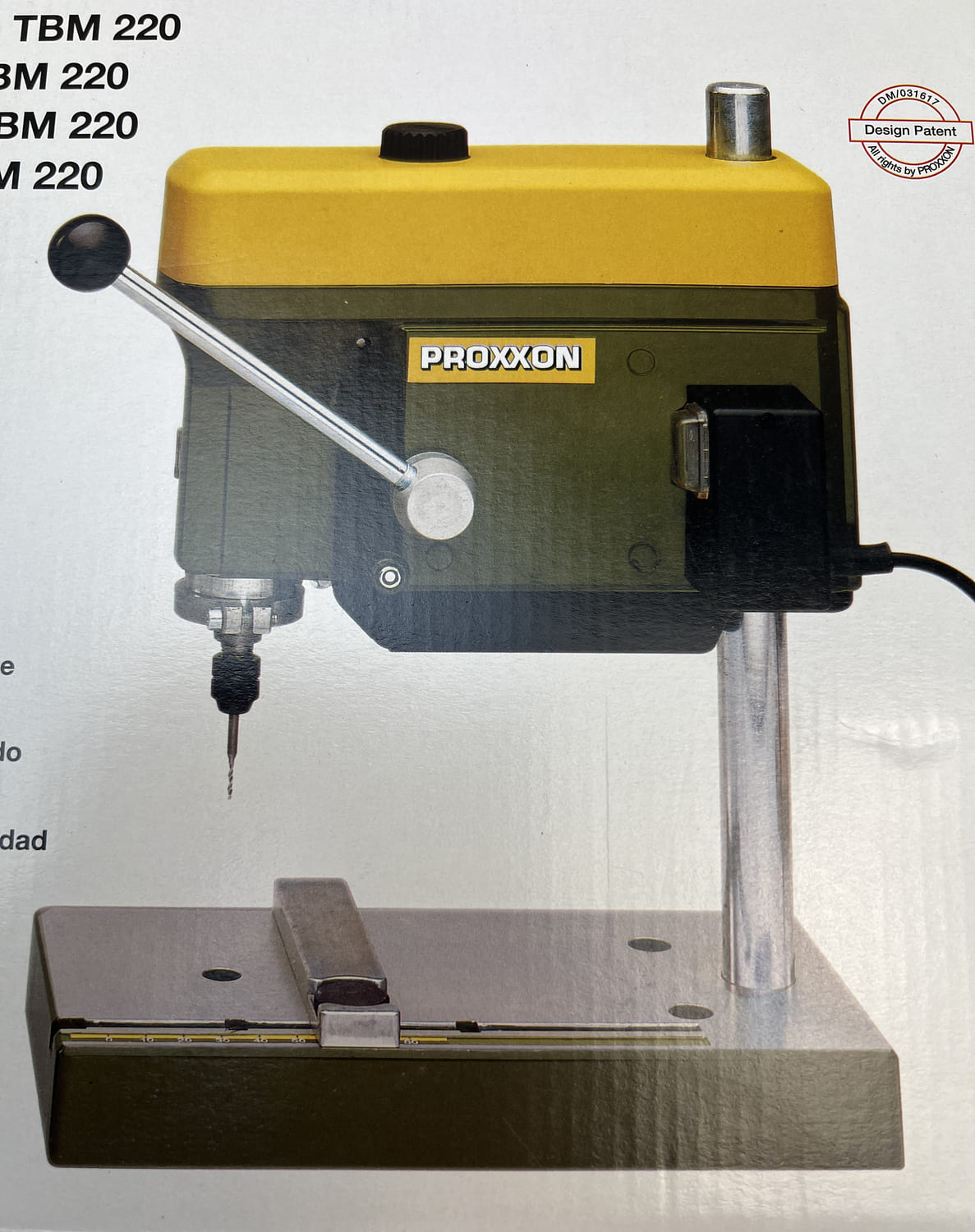

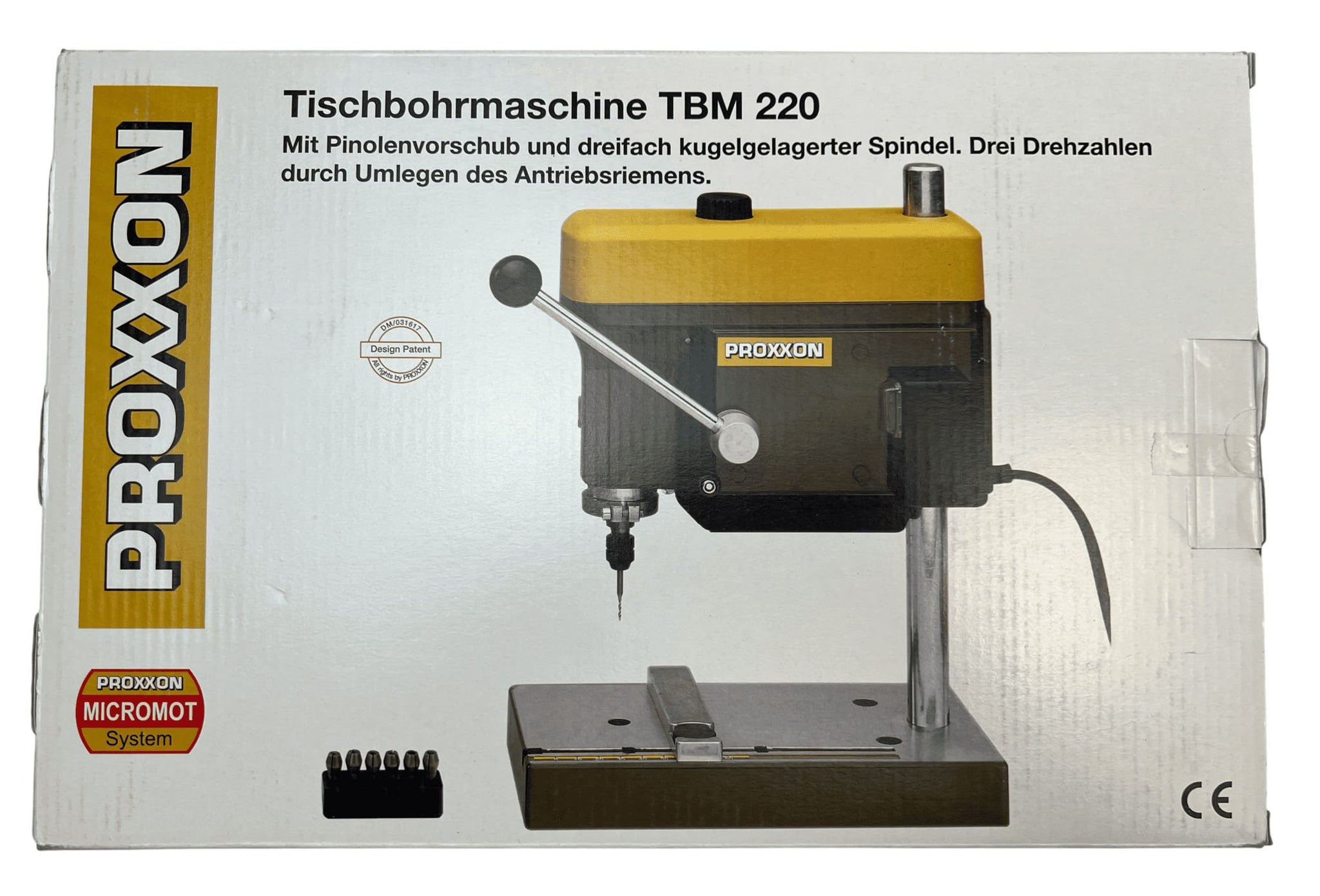

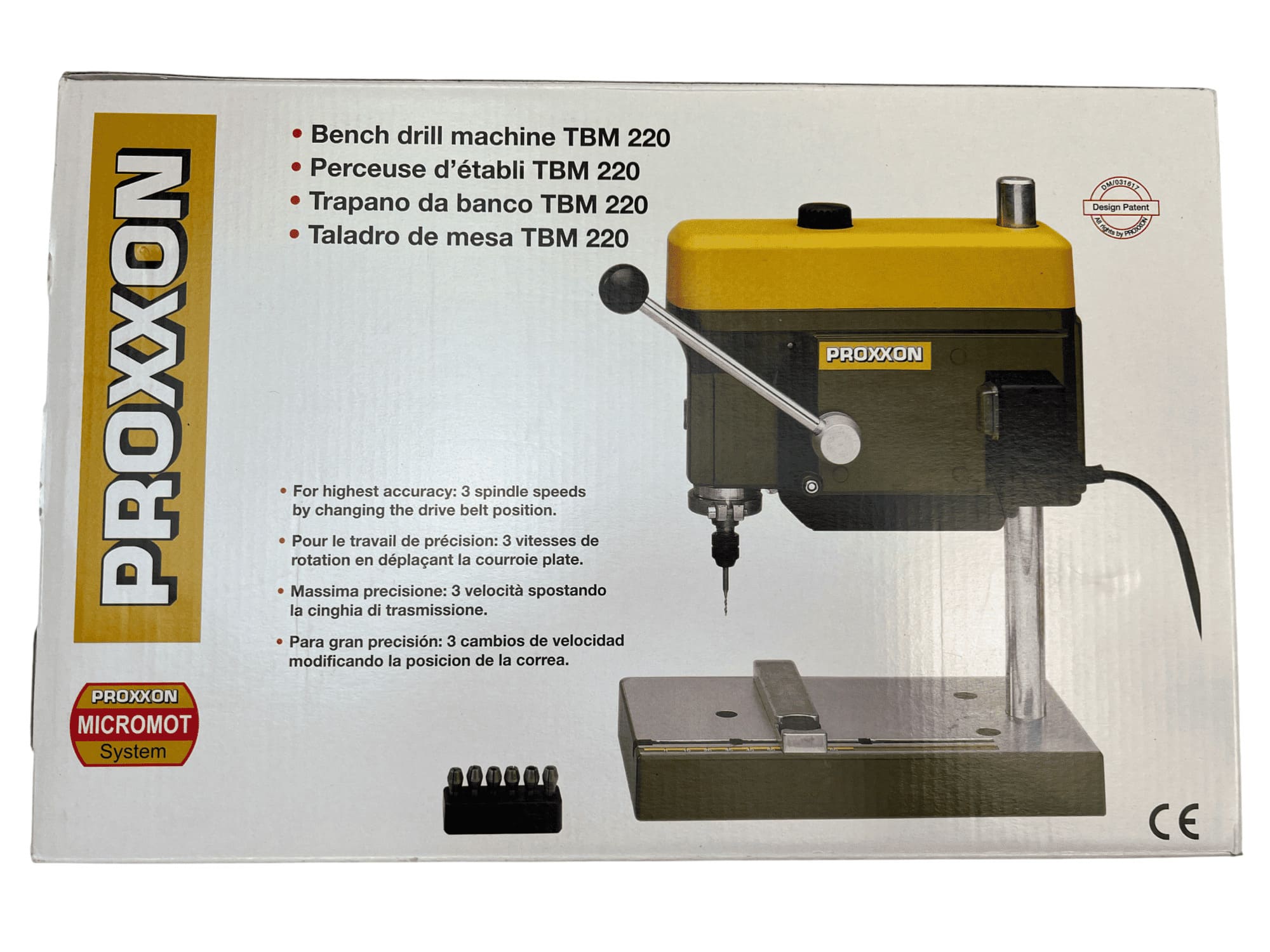

Proxxon TBM 220 Bench Drill with Geared Chuck
The Proxxon TBM 220 is a compact precision bench drill designed for detailed workshop work. It is especially well suited for watchmakers, goldsmiths, model making, and other applications where accurate drilling is important. The machine offers three selectable spindle speeds and the speed is changed by moving the drive belt, making it easy to adapt to different materials and tasks.

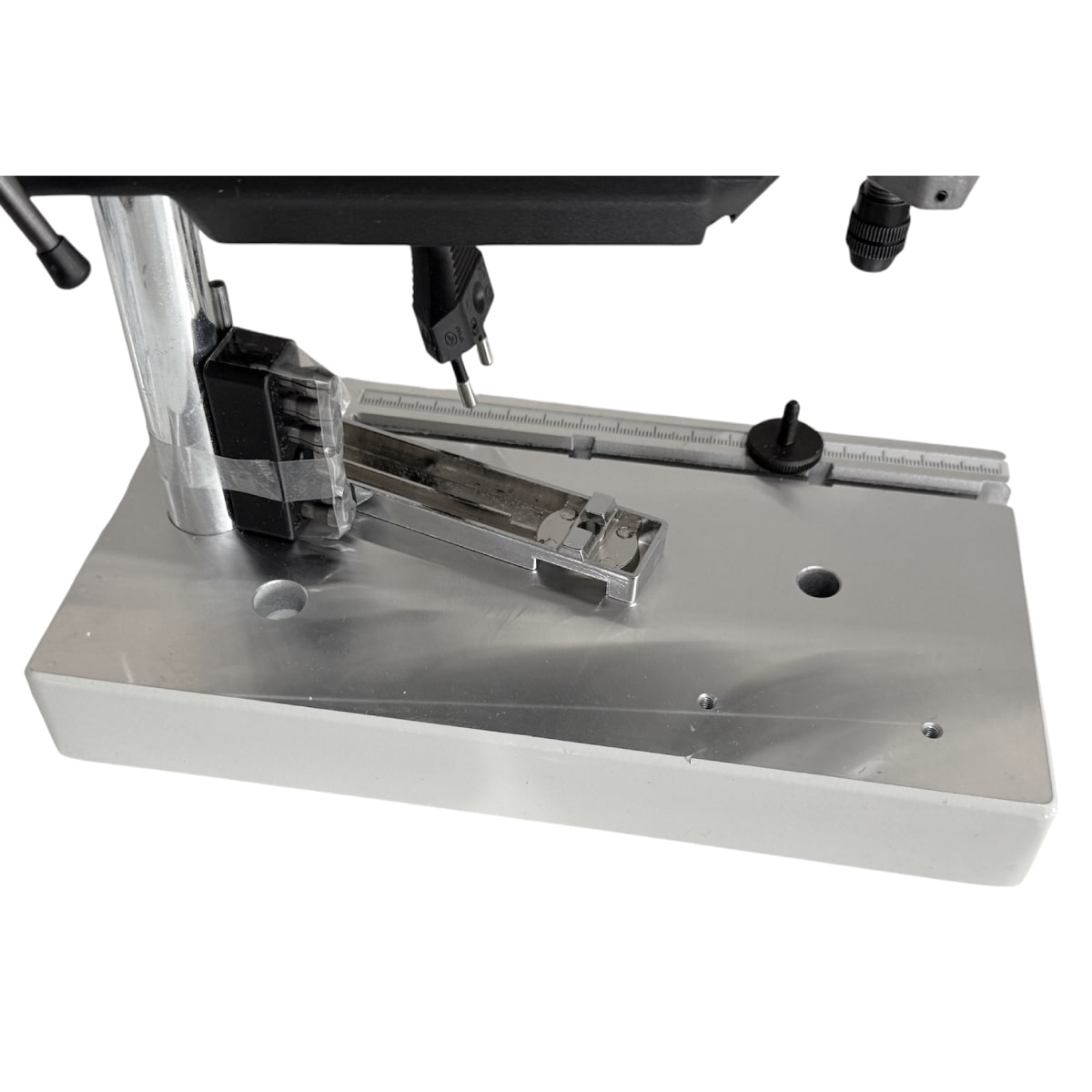

A drilling depth indicator with adjustable stop helps support repeatable results, while the chromium-plated steel column and die-cast aluminium work table provide a stable working setup. This set includes six collets for common small tool sizes, plus the Proxxon geared chuck with chuck key for added flexibility. It is a practical choice when controlled drilling and compact dimensions are both important.
Key Features
- Precision bench drill from Proxxon
- 3 selectable spindle speeds: 1,800 / 4,700 / 8,500 rpm
- Adjustable drilling depth stop
- Chromium-plated steel column
- Die-cast aluminium work table

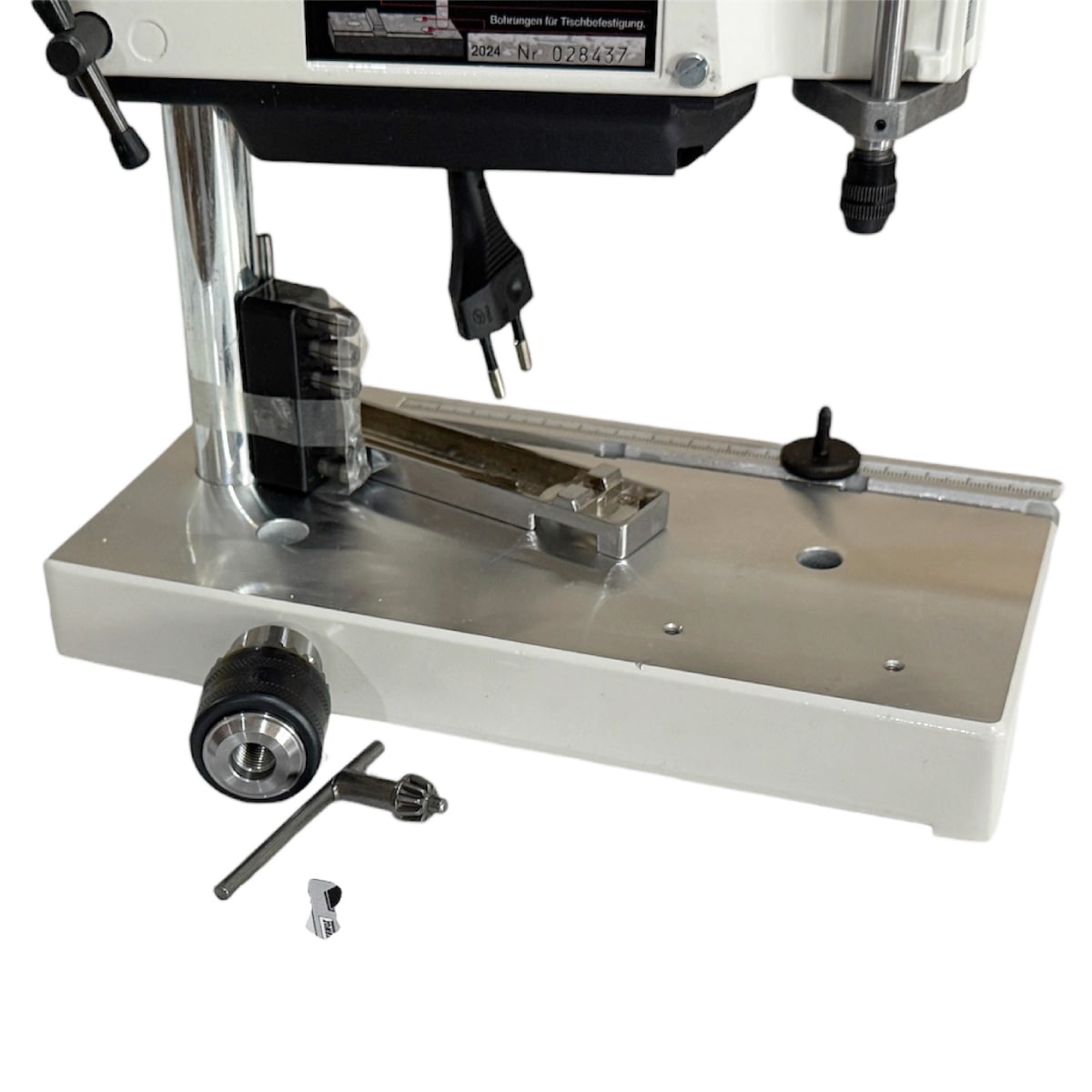

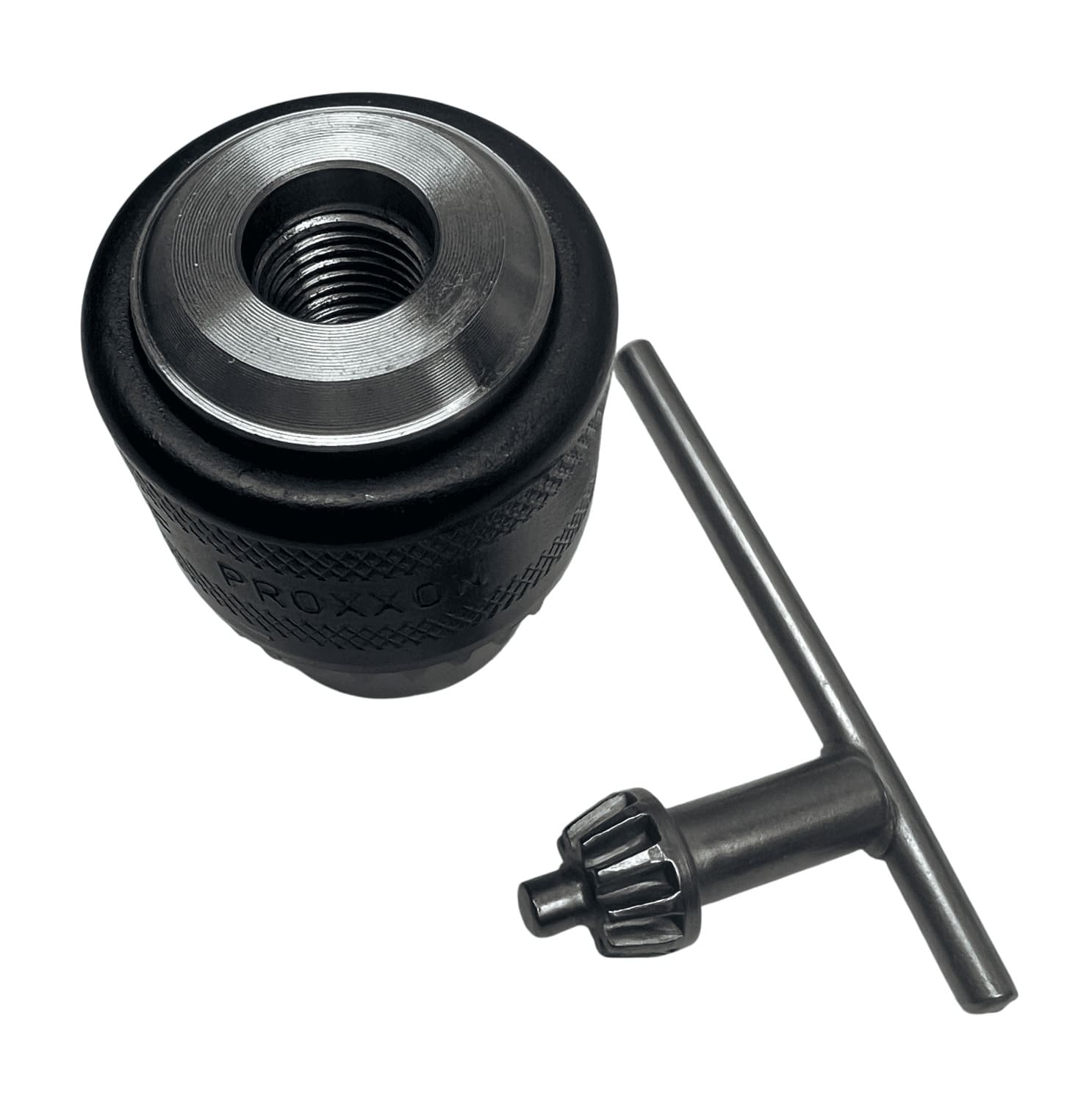

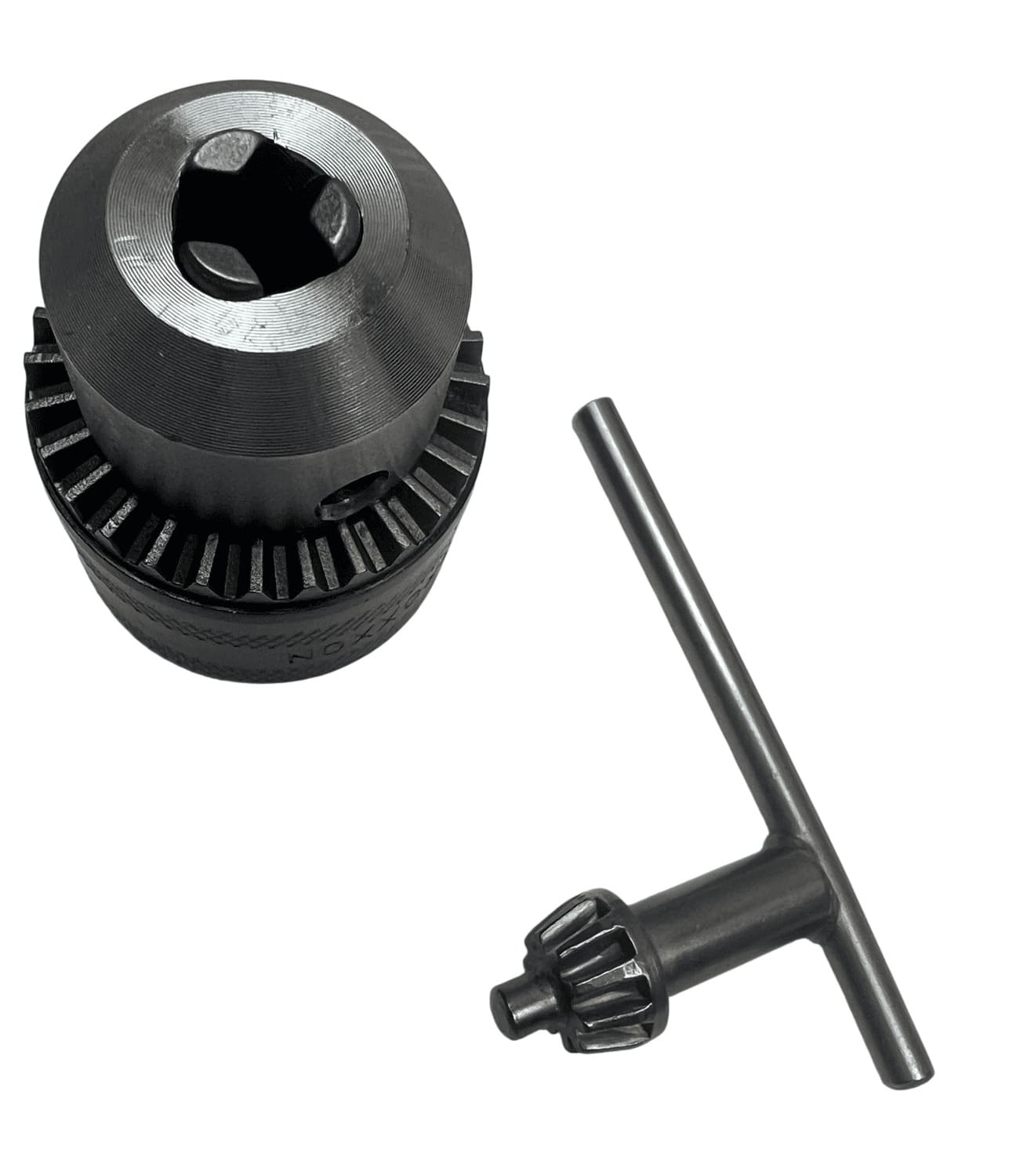

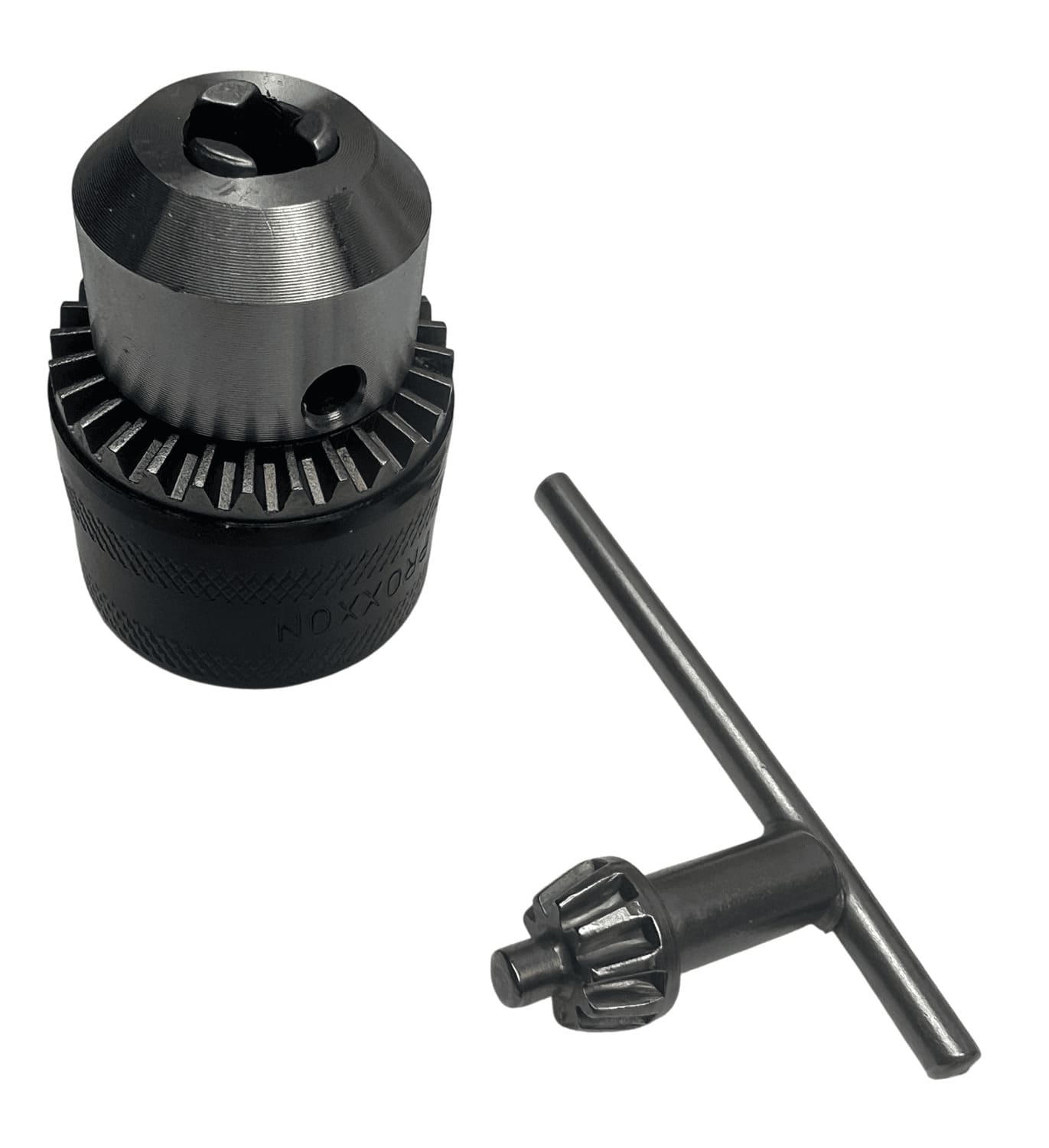

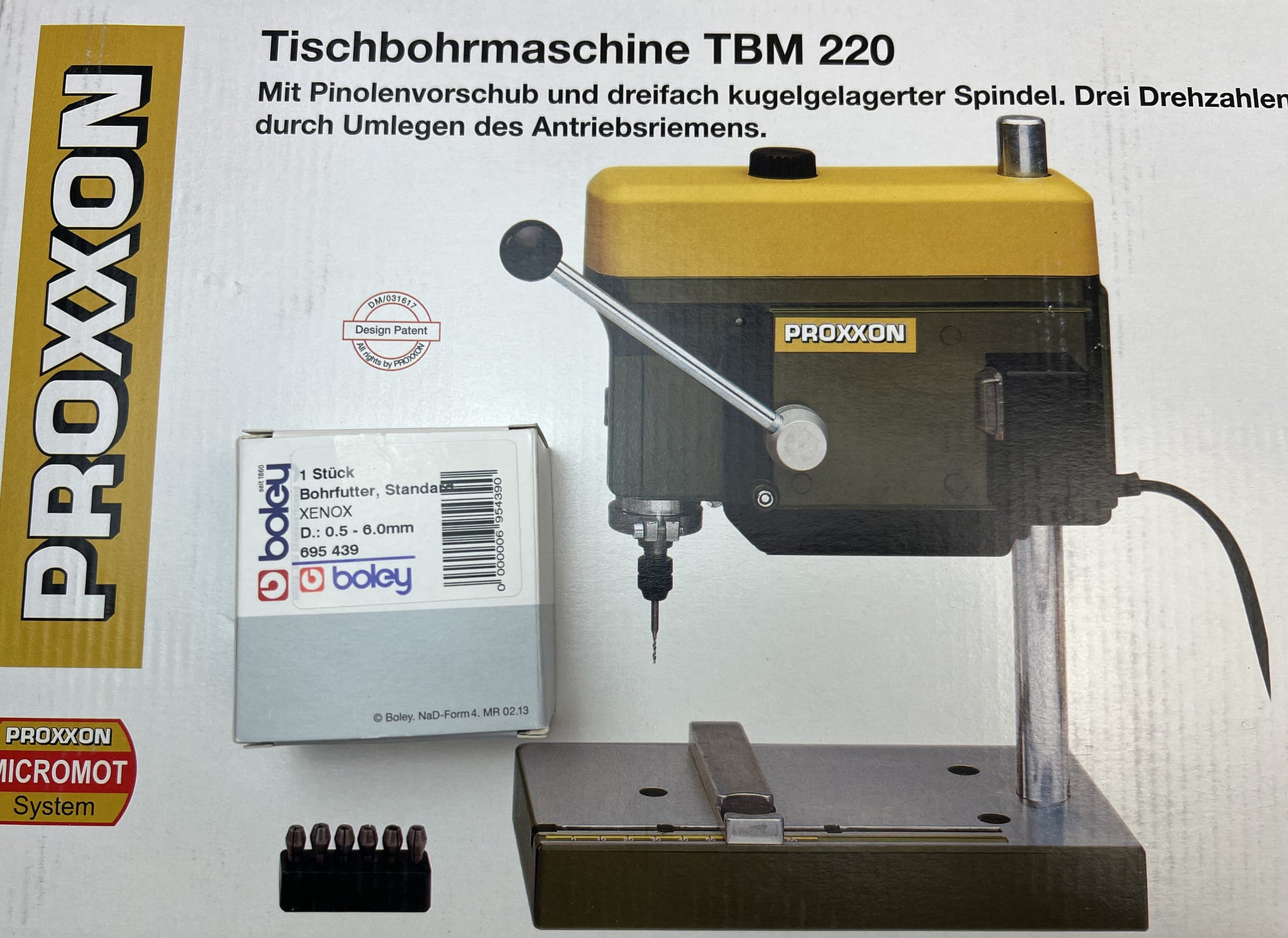

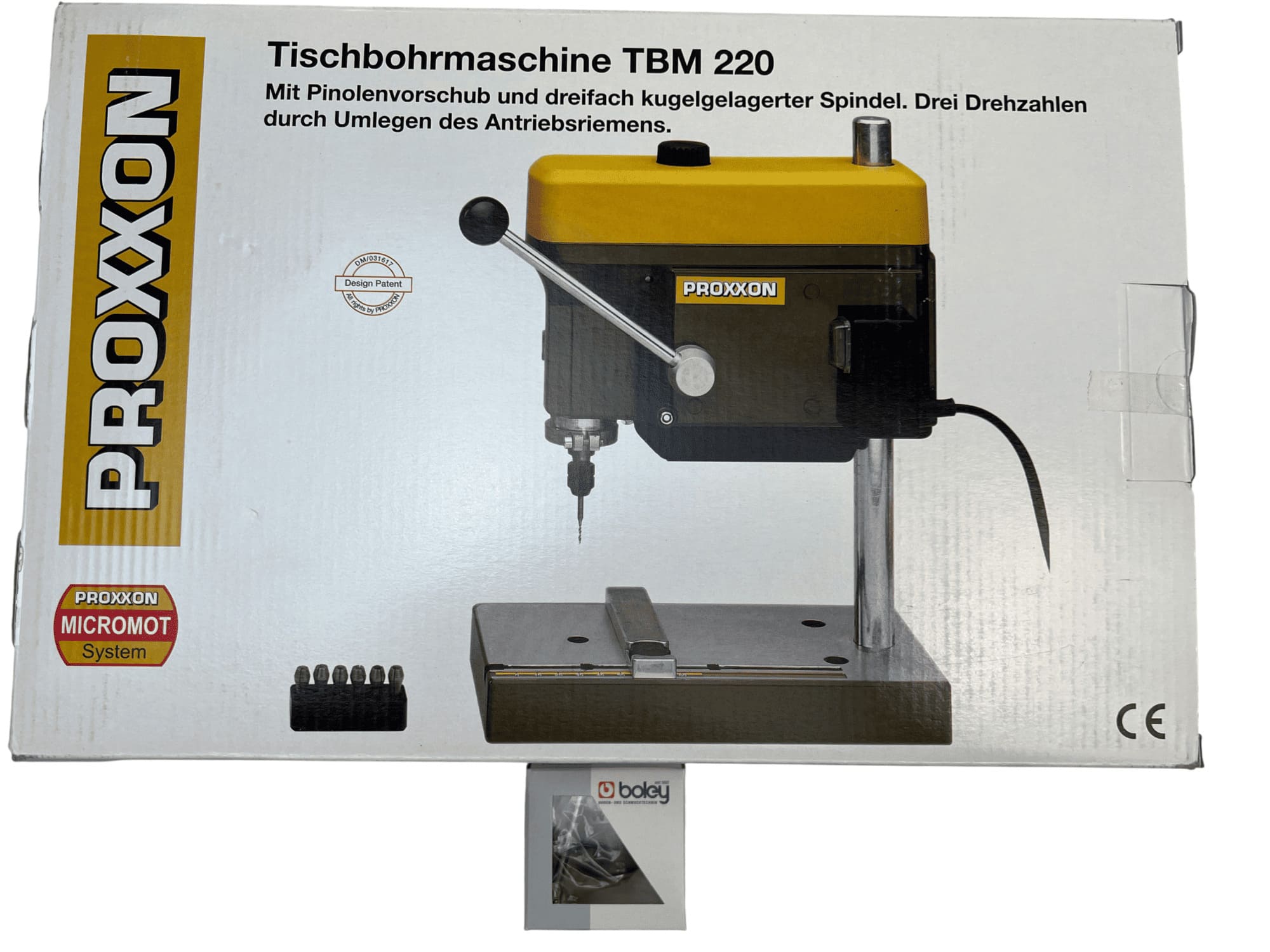

- Includes 6 collets and Proxxon geared chuck
- Chuck key included

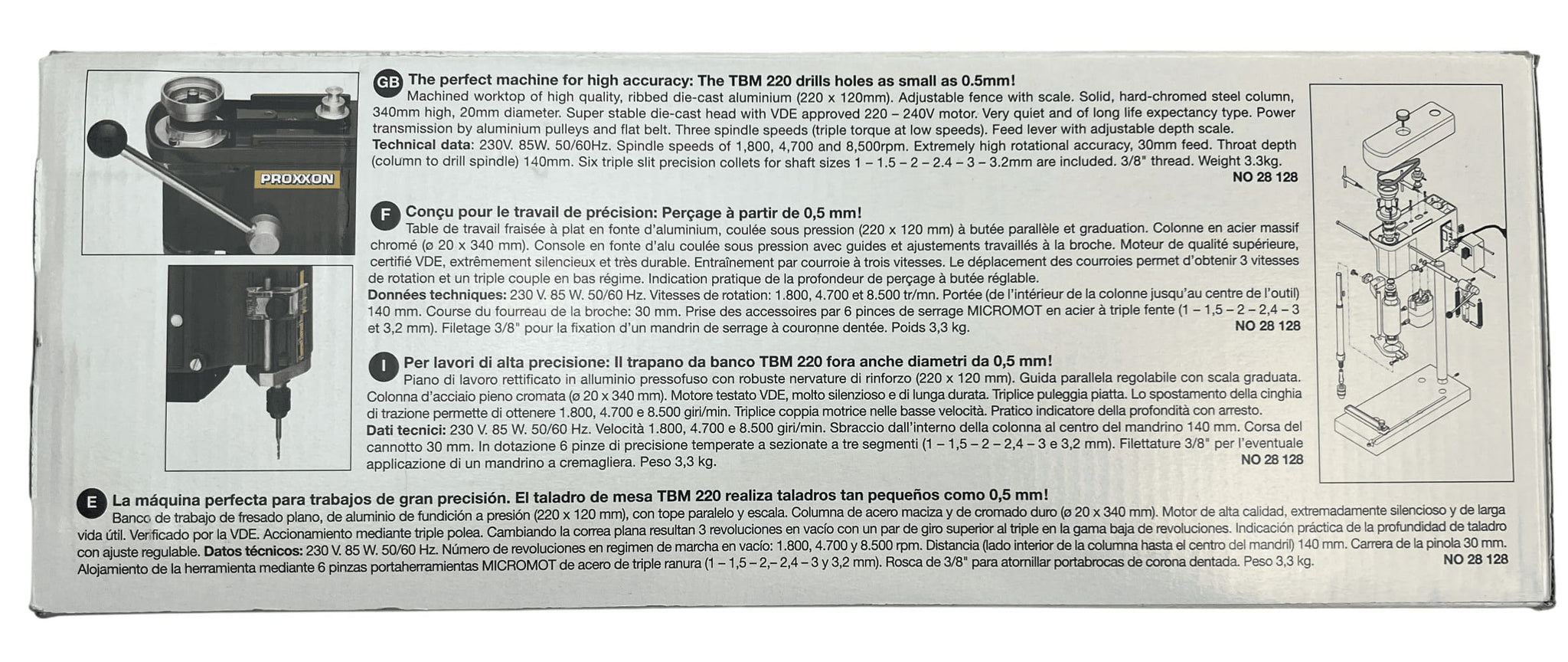

Specifications
- Model: TBM 220
- Machine Item No.: 695435
- Additional Chuck Item No.: 695439
- Motor power: 85 W
- Operating voltage: 230 V
- Quill stroke: 30 mm
- Throat depth: 140 mm
- Work table: 220 x 120 mm
- Chuck capacity: approx. 0.5–6.5 mm
- Chuck mounting: 3/8" thread
- Collet sizes: Ø 1.00 / 1.50 / 2.00 / 2.40 / 3.00 / 3.20 mm
Made in the EU, this machine combines compact construction with precise handling for workshop and hobby use.
UPC: 053517540149
